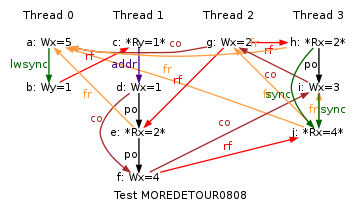

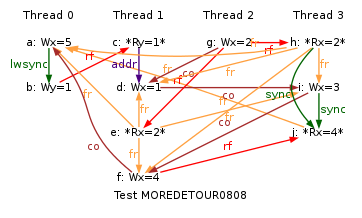

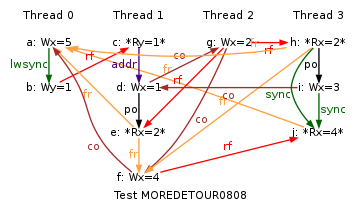

Test MOREDETOUR0808

…

PPC MOREDETOUR0808
"LwSyncdWW Rfe DpAddrdW DetourW DetourRW Wse"
Cycle=Rfe DpAddrdW DetourW DetourRW Wse LwSyncdWW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Rf Ws
Orig=LwSyncdWW Rfe DpAddrdW DetourW DetourRW Wse
{
0:r2=x; 0:r4=y;
1:r2=y; 1:r5=x;
2:r2=x;
3:r2=x;
}
 P0           | P1            | P2           | P3           ;
 li r1,5      | lwz r1,0(r2)  | li r1,2      | lwz r1,0(r2) ;
 stw r1,0(r2) | xor r3,r1,r1  | stw r1,0(r2) | li r3,3      ;
 lwsync       | li r4,1       |              | stw r3,0(r2) ;
 li r3,1      | stwx r4,r3,r5 |              | sync         ;
 stw r3,0(r4) | lwz r6,0(r5)  |              | lwz r4,0(r2) ;
              | li r7,4       |              |              ;
              | stw r7,0(r5)  |              |              ;
exists
(x=5 /\ 1:r1=1 /\ 1:r6=2 /\ 3:r4=4 /\ 3:r1=2)
