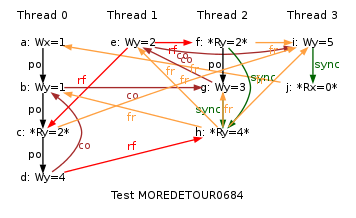

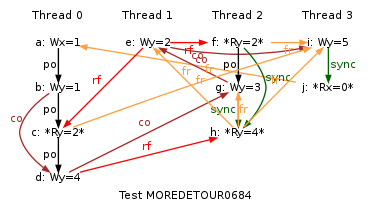

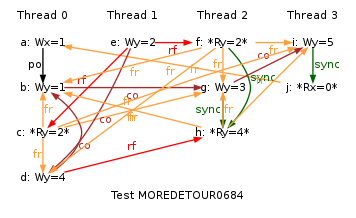

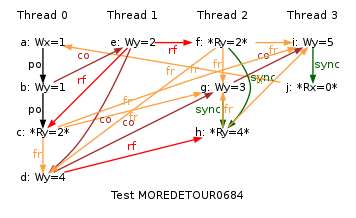

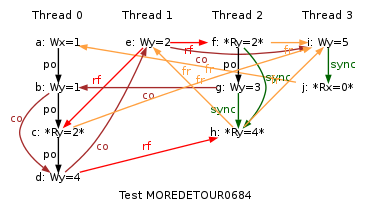

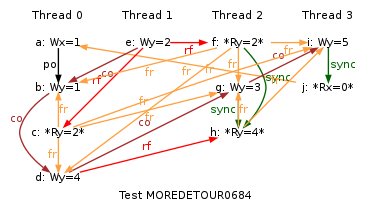

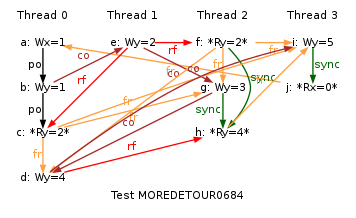

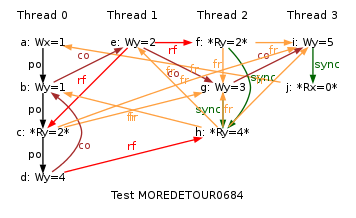

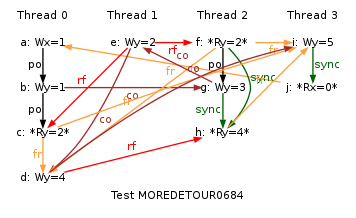

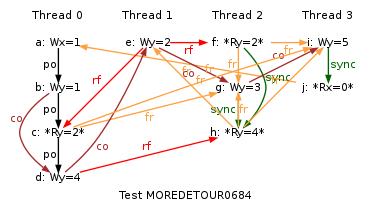

Test MOREDETOUR0684

…

PPC MOREDETOUR0684
"PodWW DetourW DetourRW Wse SyncdWR Fre"
Cycle=Fre PodWW DetourW DetourRW Wse SyncdWR
Prefetch=0:x=F,0:y=W,1:y=F,1:x=T
Com=Ws Fr
Orig=PodWW DetourW DetourRW Wse SyncdWR Fre
{
0:r2=x; 0:r4=y;
1:r2=y;
2:r2=y;
3:r2=y; 3:r4=x;
}
 P0           | P1           | P2           | P3           ;
 li r1,1      | li r1,2      | lwz r1,0(r2) | li r1,5      ;
 stw r1,0(r2) | stw r1,0(r2) | li r3,3      | stw r1,0(r2) ;
 li r3,1      |              | stw r3,0(r2) | sync         ;
 stw r3,0(r4) |              | sync         | lwz r3,0(r4) ;
 lwz r5,0(r4) |              | lwz r4,0(r2) |              ;
 li r6,4      |              |              |              ;
 stw r6,0(r4) |              |              |              ;
exists
(y=5 /\ 0:r5=2 /\ 2:r4=4 /\ 2:r1=2 /\ 3:r3=0)
