Test 2+2W+rfinar-datarnas

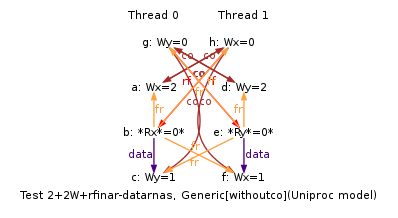

Executions for behaviour: "0:R1=0 ; 1:R1=0 ; x=1 ; y=1"

Executions for behaviour: "0:R1=1 ; 1:R1=0 ; x=1 ; y=1"

Executions for behaviour: "0:R1=2 ; 1:R1=0 ; x=1 ; y=1"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; x=1 ; y=1"

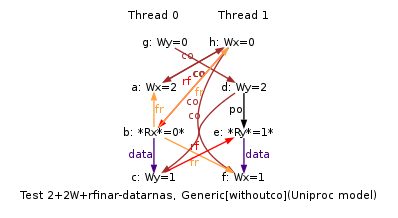

Executions for behaviour: "0:R1=0 ; 1:R1=2 ; x=1 ; y=1"

Executions for behaviour: "0:R1=0 ; 1:R1=0 ; x=2 ; y=1"

Executions for behaviour: "0:R1=1 ; 1:R1=0 ; x=2 ; y=1"

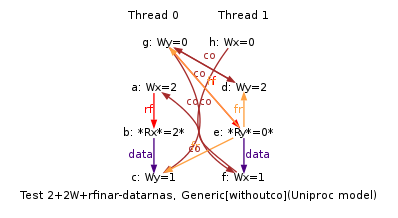

Executions for behaviour: "0:R1=2 ; 1:R1=0 ; x=2 ; y=1"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; x=2 ; y=1"

Executions for behaviour: "0:R1=0 ; 1:R1=2 ; x=2 ; y=1"

Executions for behaviour: "0:R1=1 ; 1:R1=2 ; x=2 ; y=1"

Executions for behaviour: "0:R1=0 ; 1:R1=0 ; x=1 ; y=2"

Executions for behaviour: "0:R1=1 ; 1:R1=0 ; x=1 ; y=2"

Executions for behaviour: "0:R1=2 ; 1:R1=0 ; x=1 ; y=2"

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; x=1 ; y=2"

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; x=1 ; y=2"

Executions for behaviour: "0:R1=0 ; 1:R1=2 ; x=1 ; y=2"

Executions for behaviour: "0:R1=0 ; 1:R1=0 ; x=2 ; y=2"

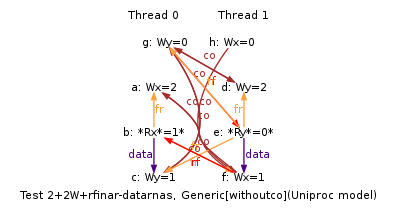

Executions for behaviour: "0:R1=1 ; 1:R1=0 ; x=2 ; y=2"

Executions for behaviour: "0:R1=2 ; 1:R1=0 ; x=2 ; y=2"

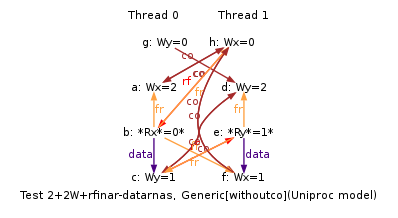

Executions for behaviour: "0:R1=0 ; 1:R1=1 ; x=2 ; y=2"

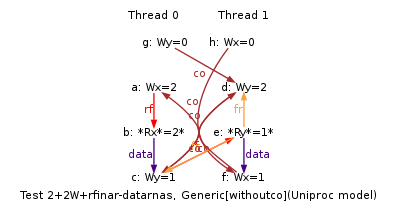

Executions for behaviour: "0:R1=2 ; 1:R1=1 ; x=2 ; y=2"

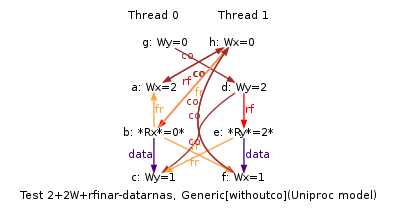

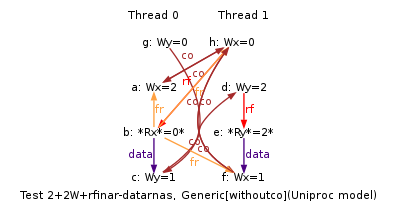

Executions for behaviour: "0:R1=0 ; 1:R1=2 ; x=2 ; y=2"

Executions for behaviour: "0:R1=1 ; 1:R1=2 ; x=2 ; y=2"

ARM 2+2W+rfinar-datarnas
"RfiNaR DpDatadWRNa Wse RfiNaR DpDatadWRNa Wse"
Cycle=RfiNaR DpDatadWRNa Wse RfiNaR DpDatadWRNa Wse
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Ws Ws
Orig=RfiNaR DpDatadWRNa Wse RfiNaR DpDatadWRNa Wse
{
%x0=x; %y0=y;
%y1=y; %x1=x;
}
 P0             | P1             ;
 MOV R0,#2      | MOV R0,#2      ;
 STR R0,[%x0]   | STR R0,[%y1]   ;
 LDREX R1,[%x0] | LDREX R1,[%y1] ;
 EOR R2,R1,R1   | EOR R2,R1,R1   ;
 ADD R2,R2,#1   | ADD R2,R2,#1   ;
 STR R2,[%y0]   | STR R2,[%x1]   ;
Observed
    0:R1=0; 1:R1=0; x=1; y=1;
and 0:R1=1; 1:R1=0; x=1; y=1;
and 0:R1=2; 1:R1=0; x=1; y=1;
and 0:R1=0; 1:R1=1; x=1; y=1;
and 0:R1=0; 1:R1=2; x=1; y=1;
and 0:R1=0; 1:R1=0; x=2; y=1;
and 0:R1=1; 1:R1=0; x=2; y=1;
and 0:R1=2; 1:R1=0; x=2; y=1;
and 0:R1=0; 1:R1=1; x=2; y=1;
and 0:R1=0; 1:R1=2; x=2; y=1;
and 0:R1=1; 1:R1=2; x=2; y=1;
and 0:R1=0; 1:R1=0; x=1; y=2;
and 0:R1=1; 1:R1=0; x=1; y=2;
and 0:R1=2; 1:R1=0; x=1; y=2;
and 0:R1=0; 1:R1=1; x=1; y=2;
and 0:R1=2; 1:R1=1; x=1; y=2;
and 0:R1=0; 1:R1=2; x=1; y=2;
and 0:R1=0; 1:R1=0; x=2; y=2;
and 0:R1=1; 1:R1=0; x=2; y=2;
and 0:R1=2; 1:R1=0; x=2; y=2;
and 0:R1=0; 1:R1=1; x=2; y=2;
and 0:R1=2; 1:R1=1; x=2; y=2;
and 0:R1=0; 1:R1=2; x=2; y=2;
and 0:R1=1; 1:R1=2; x=2; y=2;
